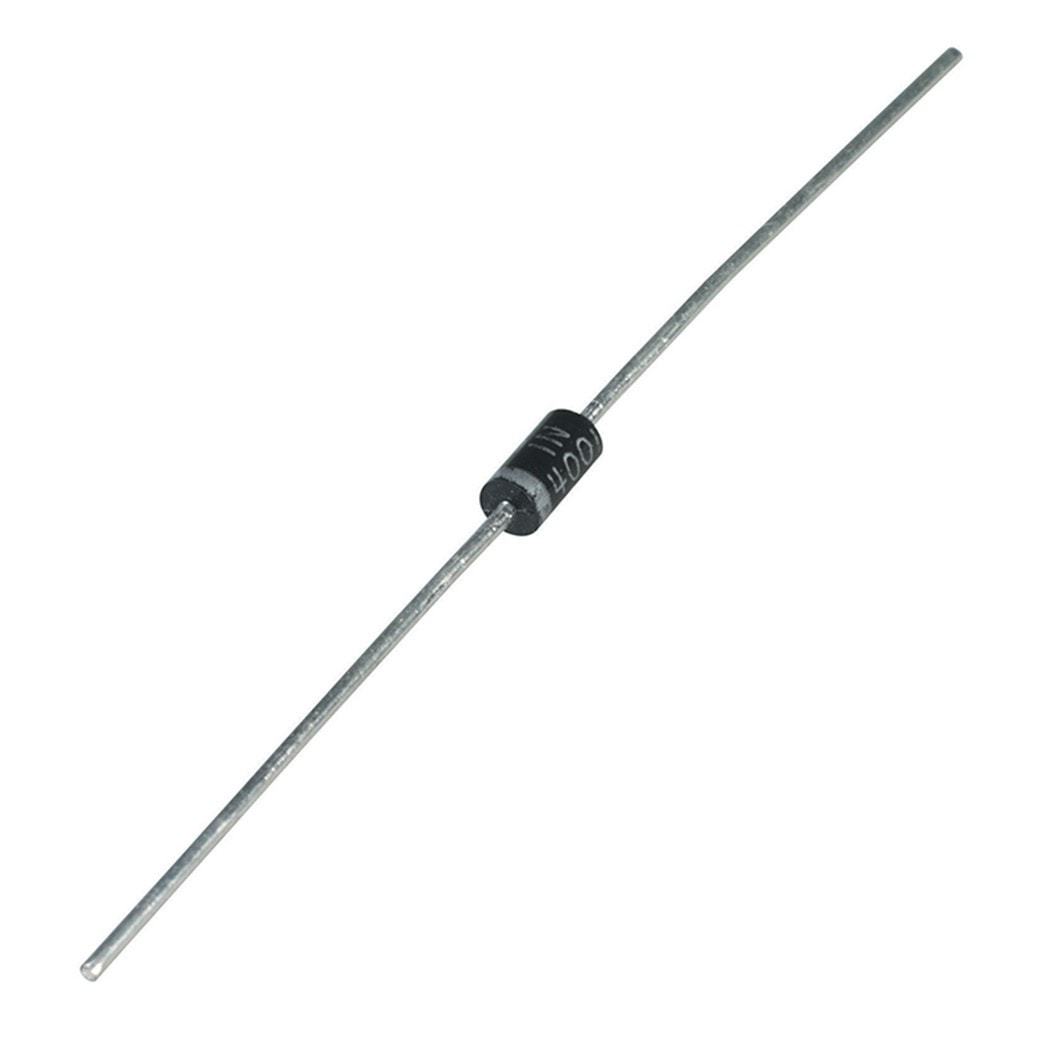

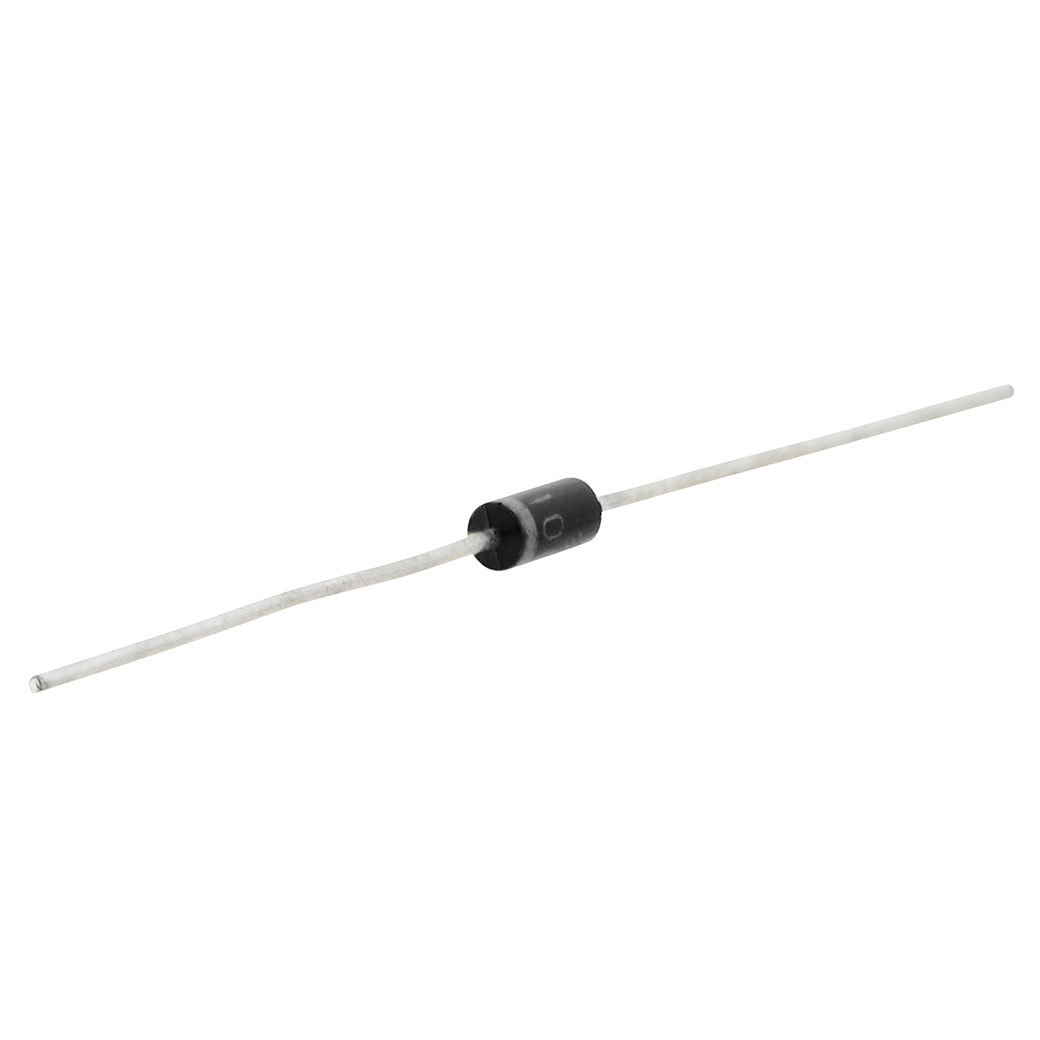

These general-purpose 1N4001 diodes have a wide variety of uses. Diodes let current flow in one direction (anode to cathode). Commonly used for rectifying voltage, these diodes can also be used to protect against reverse polarity voltage.
- 1-amp forward current with a maximum 30-amp surge.
- Protects against up to 50V peak inverse voltage (PIV).

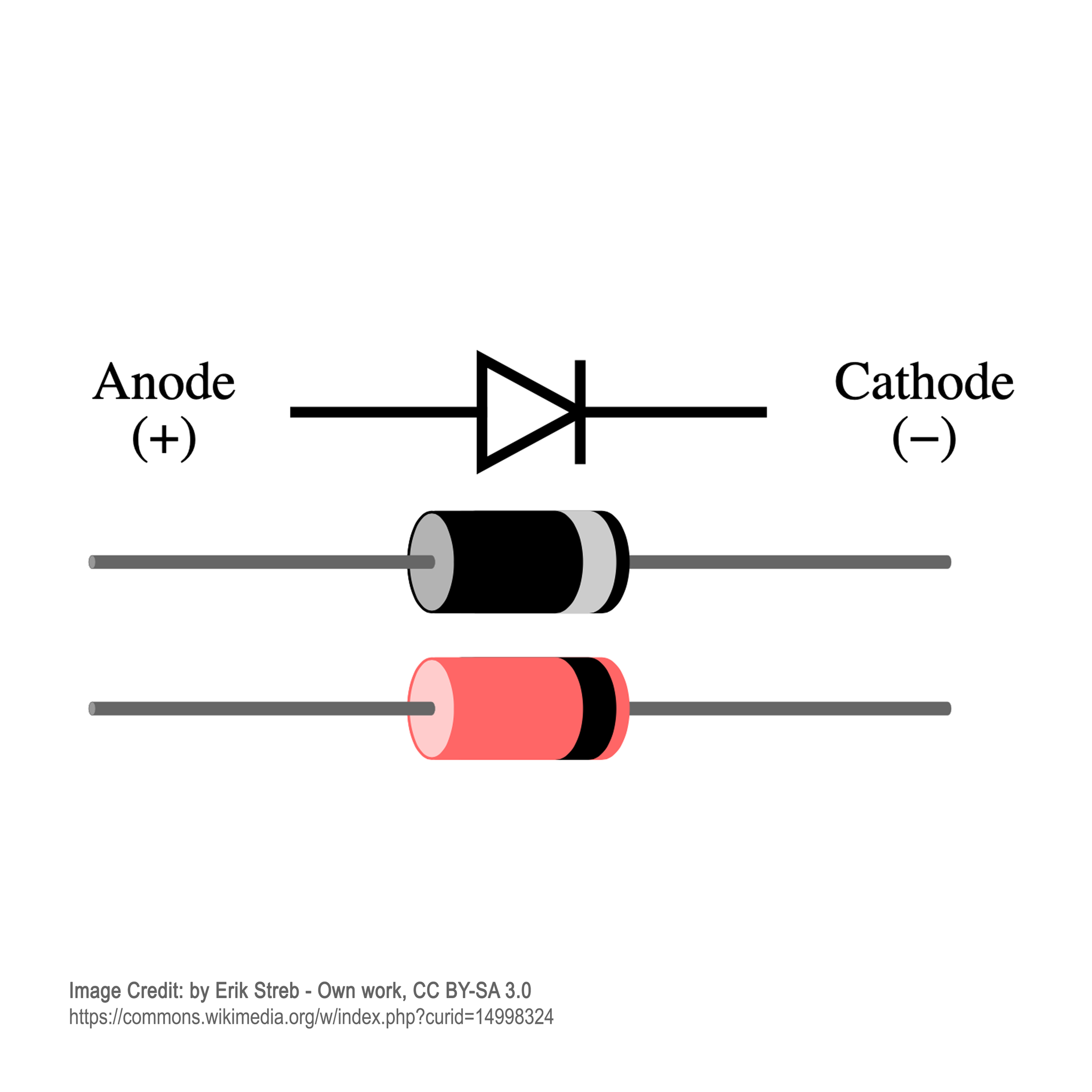

- Polarity indicated by the cathode band.

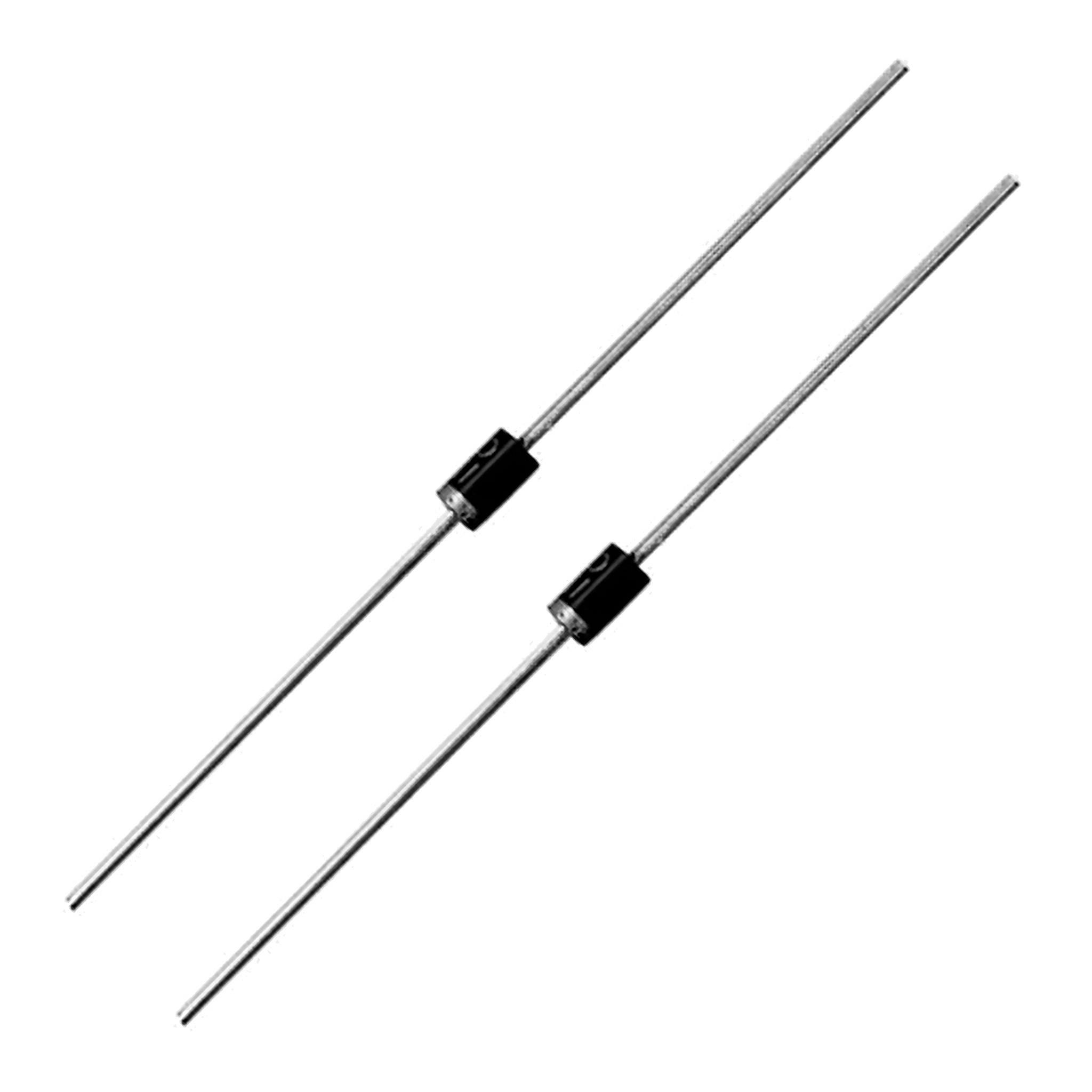

- Package of two diodes.
| Specifications | |
| Max. Peak Reverse Voltage | 50V |
| Max. Forward Current | 1A |
| Peak Forward Current | 30A |
| Max. Instant Forward Voltage | 1.1V |
| Package Type | DO-41 |
| Max. Operating Temp. | 302°F (150°C) |
90 Day Limited Warranty for Parts
Note: Due to differences in quality control and manufacturing procedures, product may vary from depiction. However, each RadioShack part should meet or exceed the required parameters.
